DR750X-1CH PLUS

FEATURES

DR750X-1CH PLUS

BlackVue DR750X-1CH Plus features Full HD Sony STARVIS TM image sensor for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.

DR750X-1CH PLUS


Full HD Cloud dashcam
Night Footage Never Looked This Good

Sony STARVIS TM sensor with Full HD 1080p at up to 60 frames per second. Record fluid videos at a wide 139° view angle.
The STARVIS image sensor ensures that your dashcam captures critical details even in low light.

Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).

With the free BlackVue Cloud service, check on your car from anywhere, anytime.

DR750X-1CH PLUS

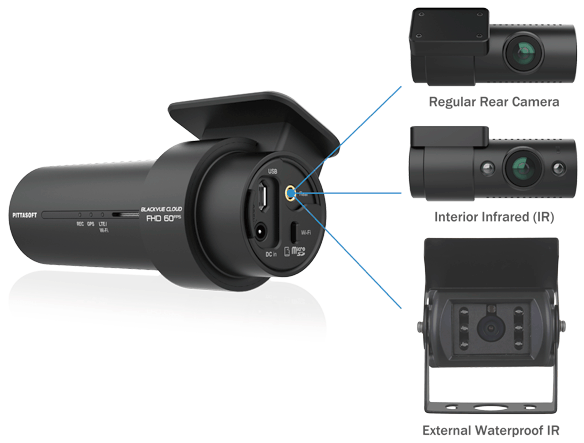

Upgrade to Dual-Channel

The single-channel DR750X-1CH Plus has a port to connect a secondary camera, would you wish to upgrade in the future. With a secondary camera and corresponding video cable, turn your DR750X-1CH Plus into DR750X-2CH Plus, DR750X-2CH IR Plus or DR750X-2CH TRUCK Plus.

Dashcam Position on vehicle


Native Parking Mode

Hardwiring cable included
DR750X Plus Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR750X Plus Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

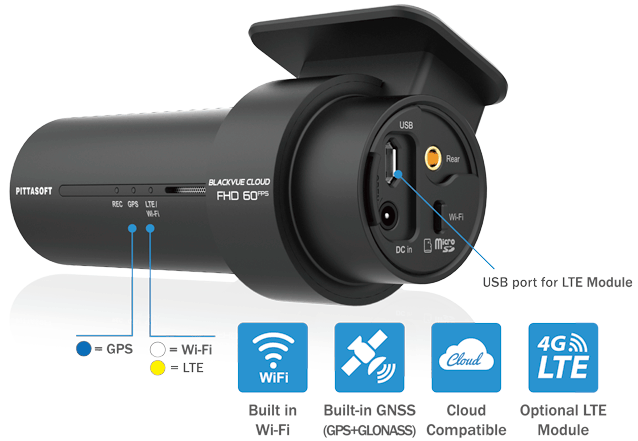

DR750X-1CH GPS, Wi-Fi and Optional LTE


GPS, Wi-Fi and Optional LTE

GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).

Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).

LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.

(*) SIM card not included.

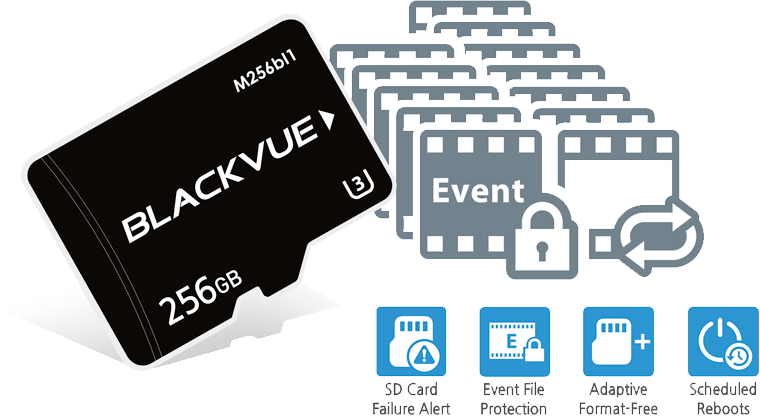

Your videos are safe
Your videos are safe

Event Files Overwrite Protection:
Dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.

Adaptive Format-Free File Management:
This BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert:
Your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

Dashcam SPeaker and Recording modes


Built-in Impact & Motion Detection

Automatically tags important files:
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.

Use the filters in the BlackVue App and Viewer:
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.

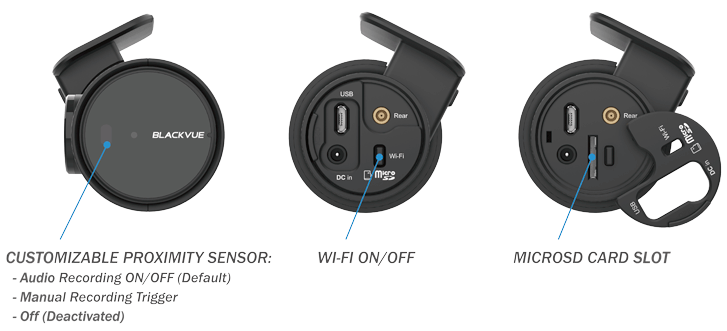

Sleek Interface


Sleek Interface

Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.

Wi-Fi button
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.

Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

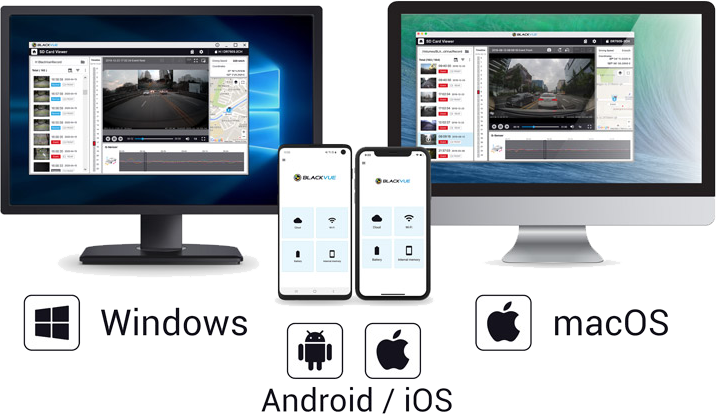

BlackVue App and Viewer


Manage Videos Easily with the BlackVue App and Viewer

The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dash​cam to retrieve videos on the spot.

BlackVue Cloud


BlackVue Cloud

Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.

Enjoy remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
Check the BlackVue Cloud page for more information.

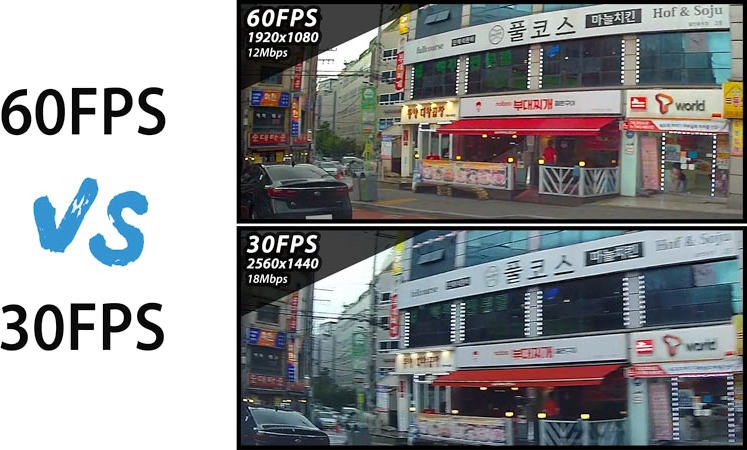

High Frame Rate for Extra Fluidity


High Frame Rate for Extra Fluidity

The advantage of 60FPS video capture

The camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.

Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.

Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.

LTE Connectivity Module (Optional)


LTE Connectivity Module (Optional)

The CM100LTE connects to your compatible BlackVue X Plus Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.

Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.

Tamper-Proof Case (Optional)


Tamper-Proof Case (Optional)

The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.

Triple protection

❖ Locks the dashcam’s angle via an hex screw to prevent rotation.
❖ Blocks the access to the microSD card slot.
❖ Protects against the unplugging of the power, video and USB cables.

Improved Sony STARVIS Sensor

The Sony STARVIS™ image sensor that equips the DR750X Plus Series front and rear cameras delivers outstanding low-light performance.
The back-illuminated sensor is capable of capturing an unprecedented amount of detail in both shadows and highlights.


Check below for a side-by-side comparison between the DR750X Plus and its predecessor the DR750X.

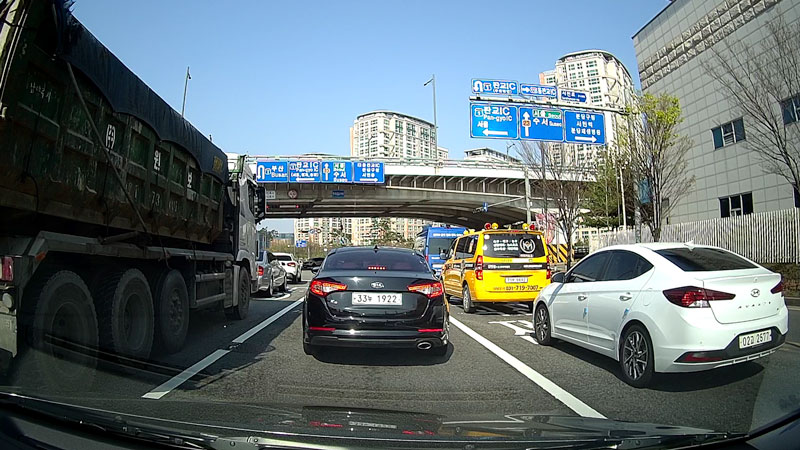

DR750X (Day)

DR750X (Day)

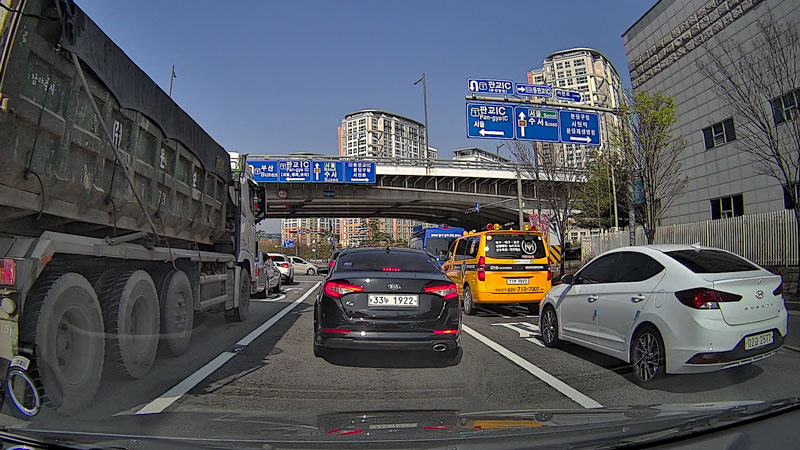

DR750X PLUS (Day)

DR750X PLUS(Day)
More vivid colors, shadow details preserved

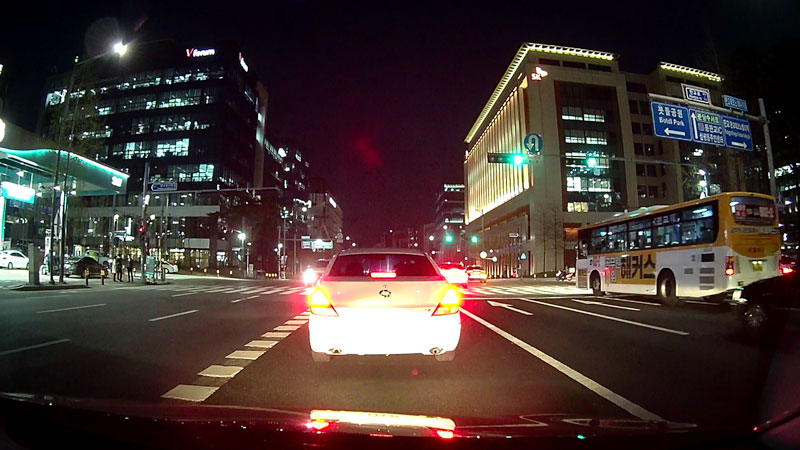

DR750X (Night)

DR750X (Night)

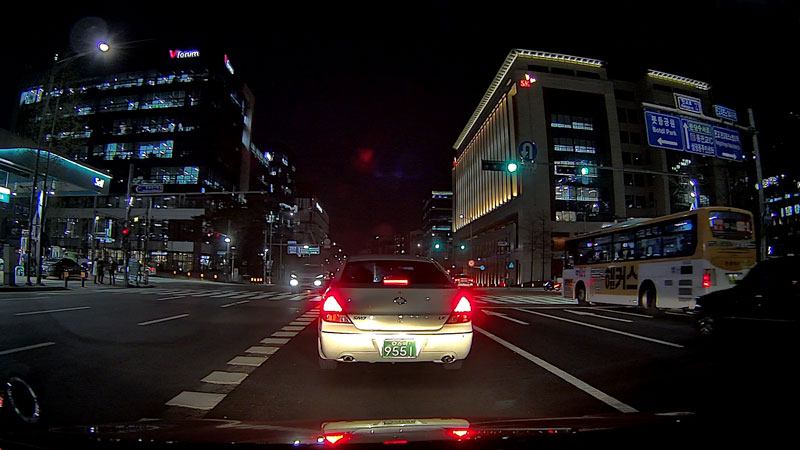

DR750X PLUS (Night)

DR750X PLUS (Night)
Preserved details in highlights, minimized flare

Intelligent Parking Mode

Protect your car when you are away.

Taxi bumping into car
Neighborly Hit and Run
Vehicle Hit By A Shopping Cart
Jeep Door Thief Caught On BlackVue

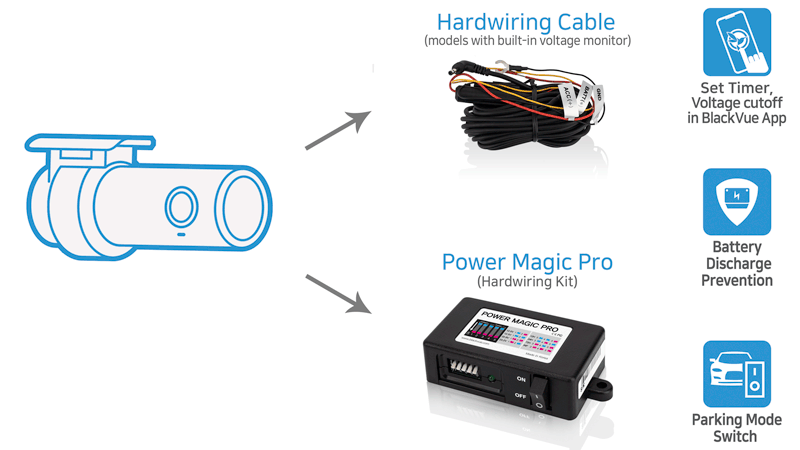

Parking Mode Kits

Parking Mode Kits

Parking Mode Batteries

Parking Mode Batteries


BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR750X Plus Series supports two Parking Mode options:

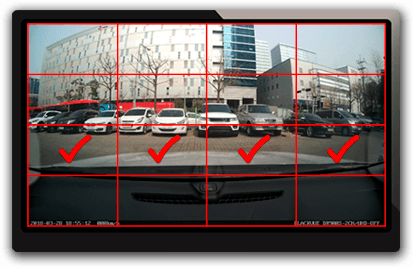

Reion Based

Motion & Impact Detection Parking Mode detects both:

❖ Motions recorded by the image sensor (marked “P” in the file list).
❖ Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).

Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.

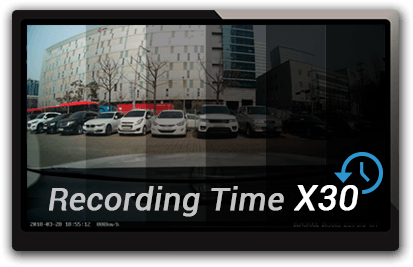

Time Lapse

Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 70 hours on a 32GB microSD card at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.

And also:

Parking Mode Event Voice Notifications:
Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.

Scheduled Reboot:
Schedule a daily automatic reboot (optional—at night by default) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.

Super stealthy:
Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
